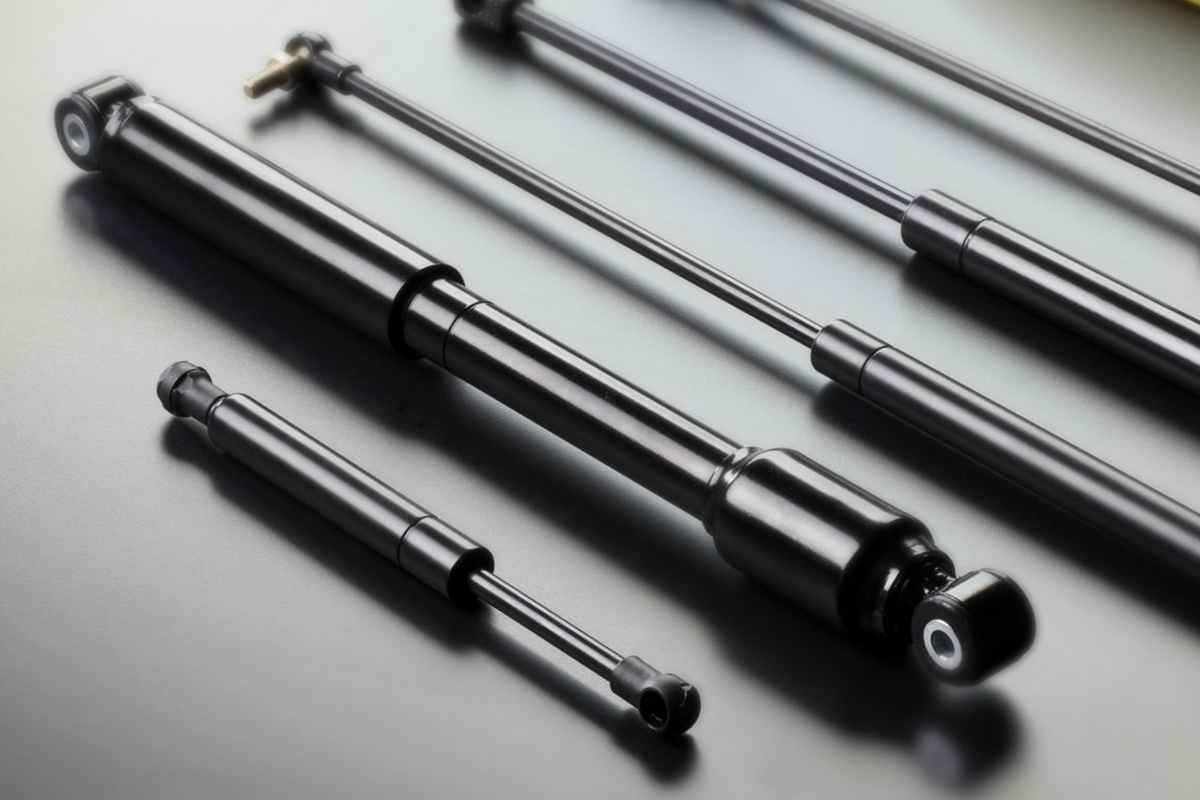

About Our Gas Springs

Our gas springs are used whenever loads need to be lifted or lowered or fixed in a controlled manner in the industrial applications. They provide force assist, weight control and smooth motion flow.

We offer you a wide range of gas spring types -such as standard, traction, locking, adjustable-force, dynamic damping- with different materials, lengths and forces. Also you have infinite customization options of damping and stroke lengths, rod/tube diameters, valve (top/side), painting and a thousand different end fittings.

For Standart Gas Springs

Available rod/tube diameters (mm) : 4/12, 6/15, 6/18, 8/18, 8/22, 10/22, 10/27, 14/27, 20/40

Force: 10 to 3000 N

For Traction Gas Springs

Available rod/tube diameters (mm) : 8/18, 10/22, 10/27

Force: 50 to 2000 N

For Locking Gas Springs

Available rod/tube diameters (mm) : 8/21, 8/27, 10/22, 10/27

Types: Rigid in extension, Rigid in compresion, Rigid in both side, Flexible in both side

Force: 50 to 1500 N

For Dynamic Damping Gas Springs

Available rod/tube diameters (mm) : 6/15, 8/18, 10/22, 10/27, 14/27

Force: 50 to 2500 N

Materials

Steel, Stainless Steel (304, 316 and 316L)

End Fittings

Eyelets, Clevises, Metal and Plastic Ball-joints, Ball-sockets, Ball Studs, Brackets and Customized End Fittings

CLICK FOR GAS SPRINGS CATALOG

CLICK FOR END FITTINGS CATALOG

MORE INFORMATION ABOUT END FITTINGS
