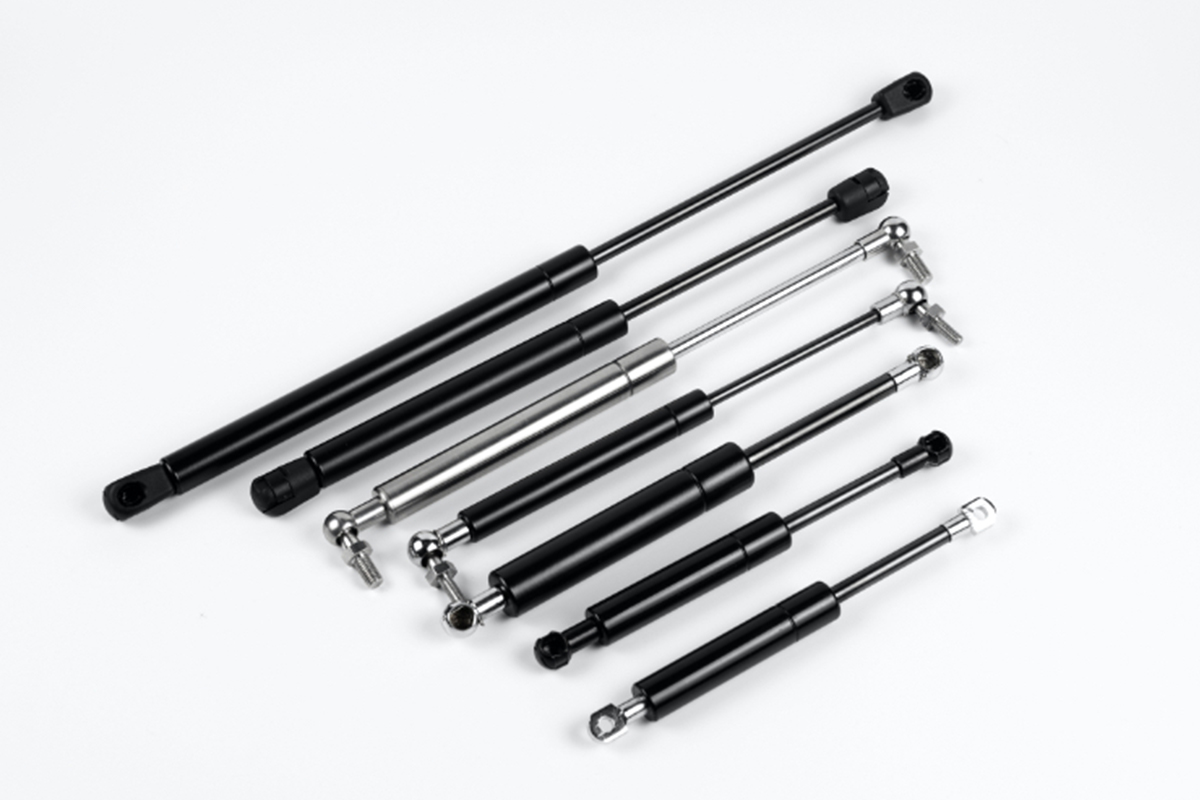

About Our Gas Spring End Fittings
Our gas spring end fittings are manufactured from a wide range of types, materials -such as steel, stainless steel and plastic-, sizes and coatings to meet customers’ requirements for different situations.
We offer you high-quality end fittings with customization options for automotive, agricultural machinery, aerospace, RV / Caravan, medical and industrial applications.
For Ball-joints
Available with / without safety clips and Snap-on
External and internal threads: M4 to M12
Center lenghts: 13 – 35 mm
For Metal & Plastic Ball-sockets
Available with / without safety clips and Snap-on
Internal threads: M4 to M12
Socket diameter: Ø 8 to 16 mm
Center lenghts: 13 – 35 mm
For Ball Studs
Available external threads: M4 to M12
Ball diameter: Ø 8 to 16 mm
Thread lenghts: 5 to 40 mm
For Clevises and Clipses
Internal threads: M4 to M20
Hole & Pin diameter: Ø 4 to 20 mm
Center lenghts: 16 – 80 mm
For Eyelets
Internal threads: M4 to M12
Hole diameter: Ø 4 to 20 mm
Center lenghts: 13 – 45 mm
For Brackets
Available with / without ball studs and mandrels
Materials
Steel, Stainless Steel (304, 316 and 316L) and Plastic
